Coastliner CF
approved EN15194.

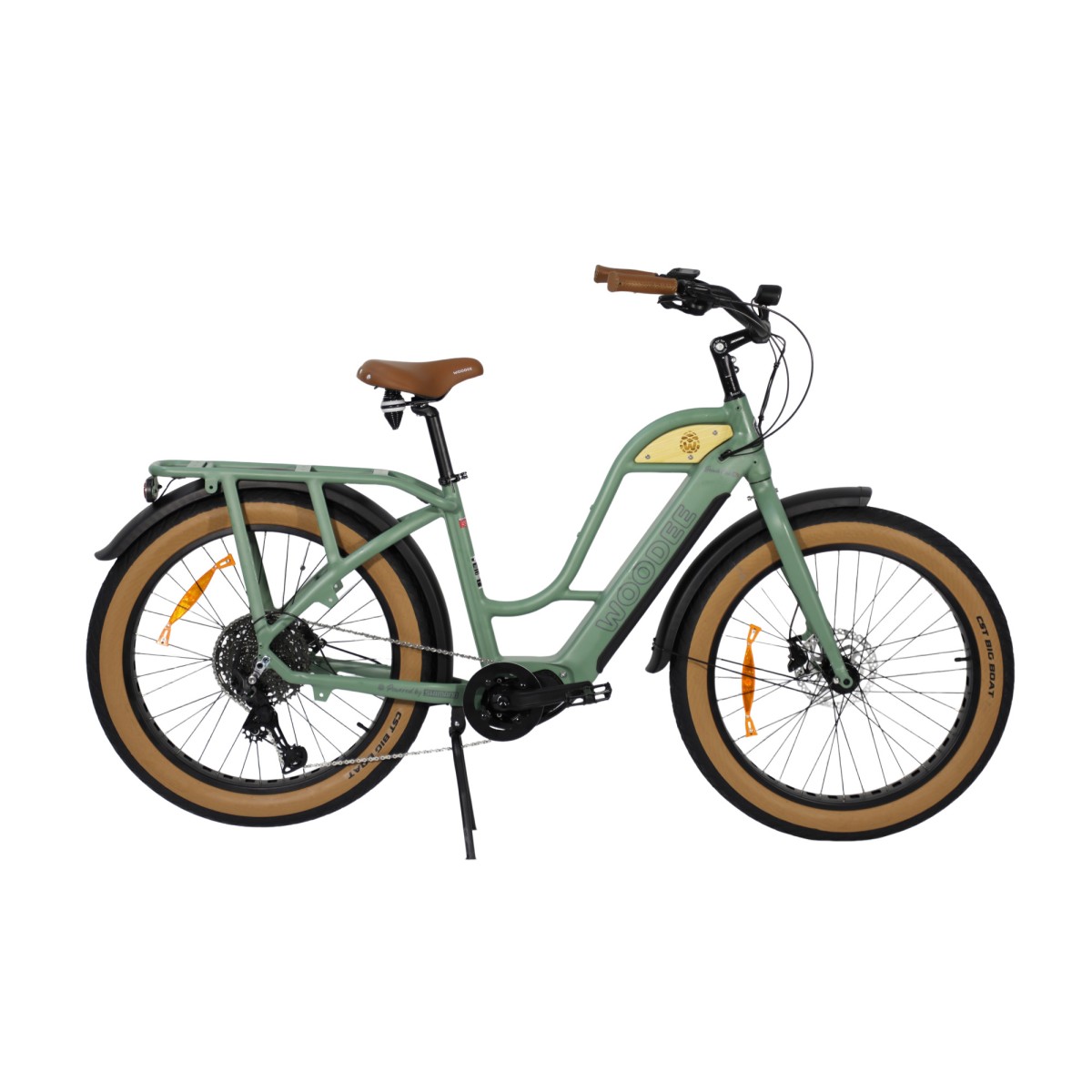

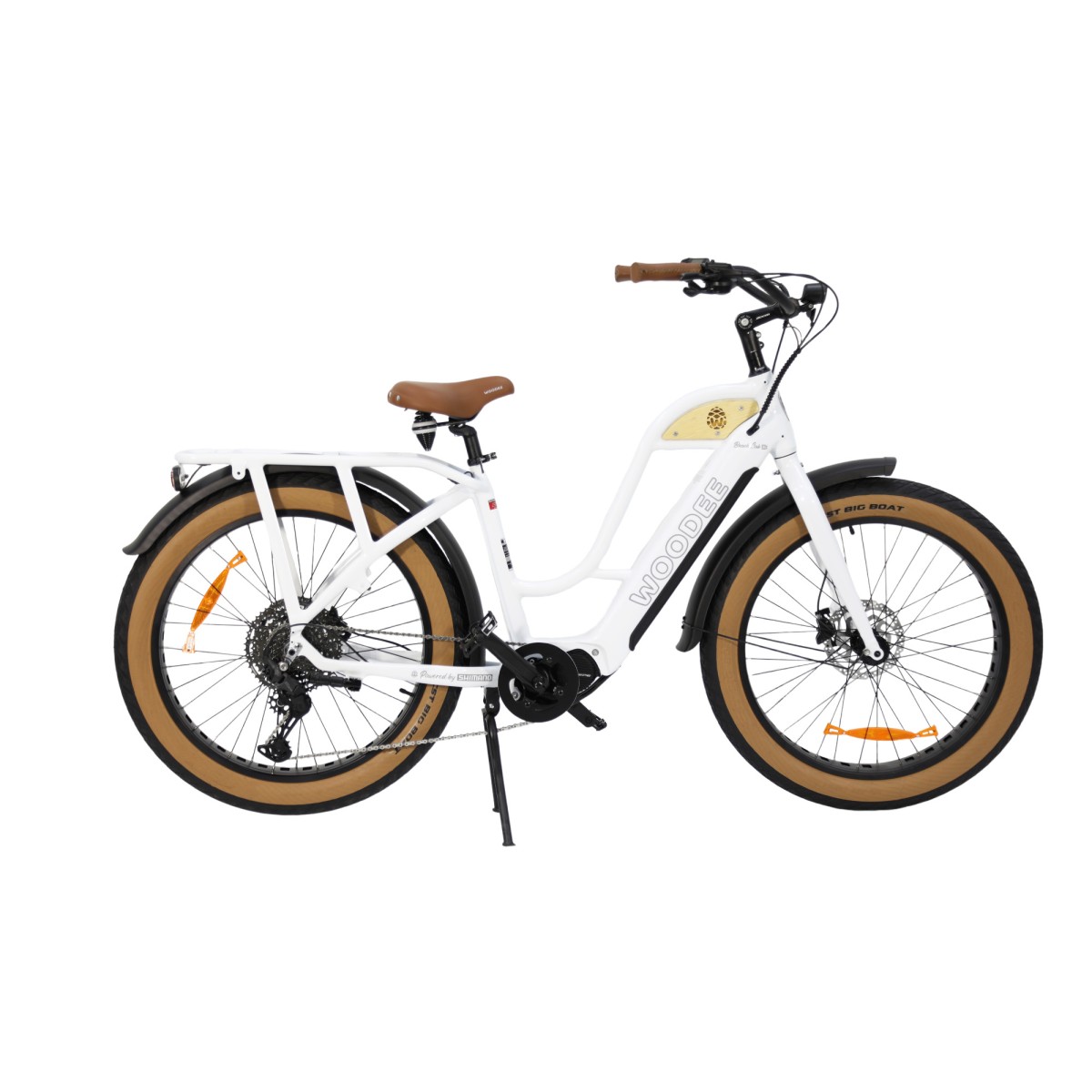

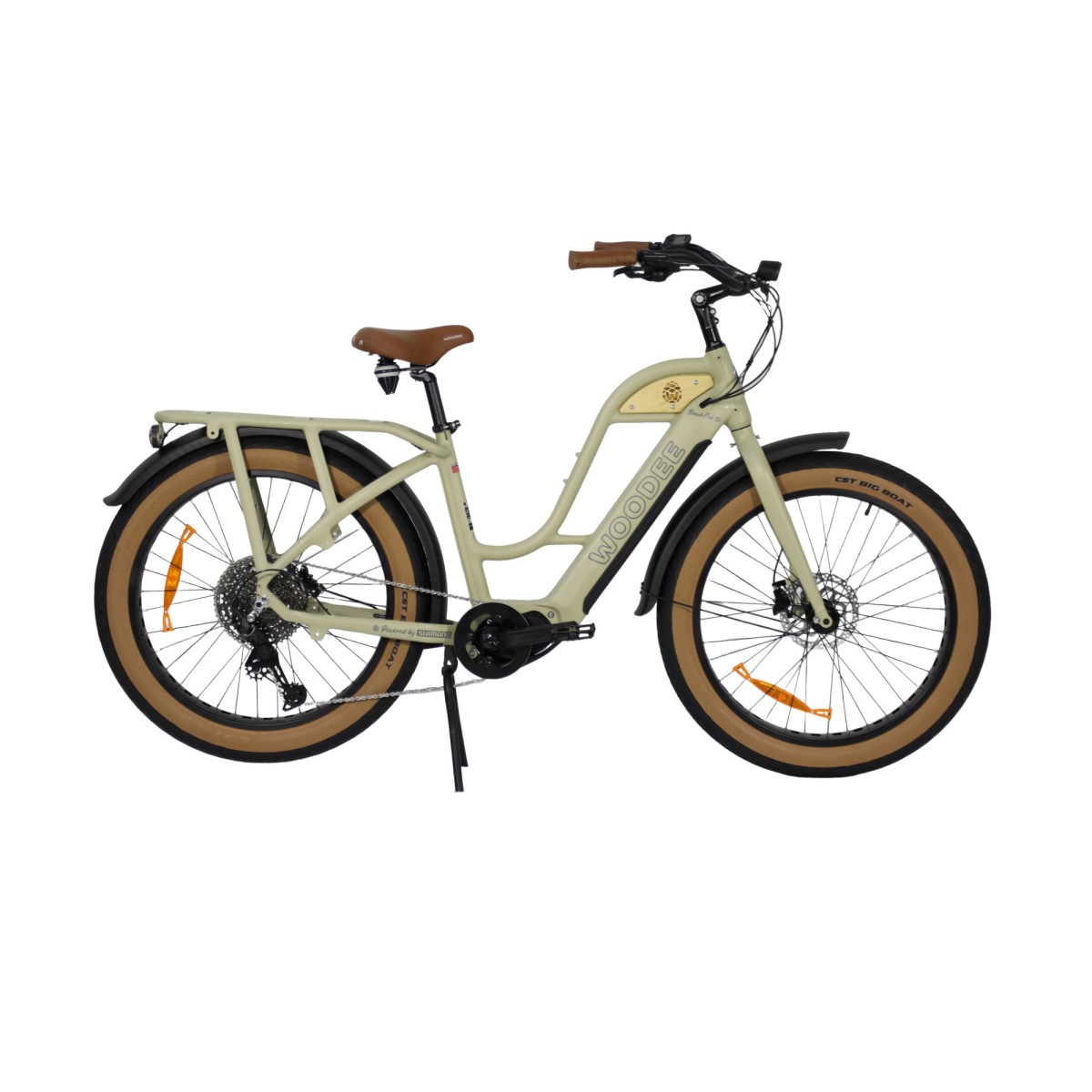

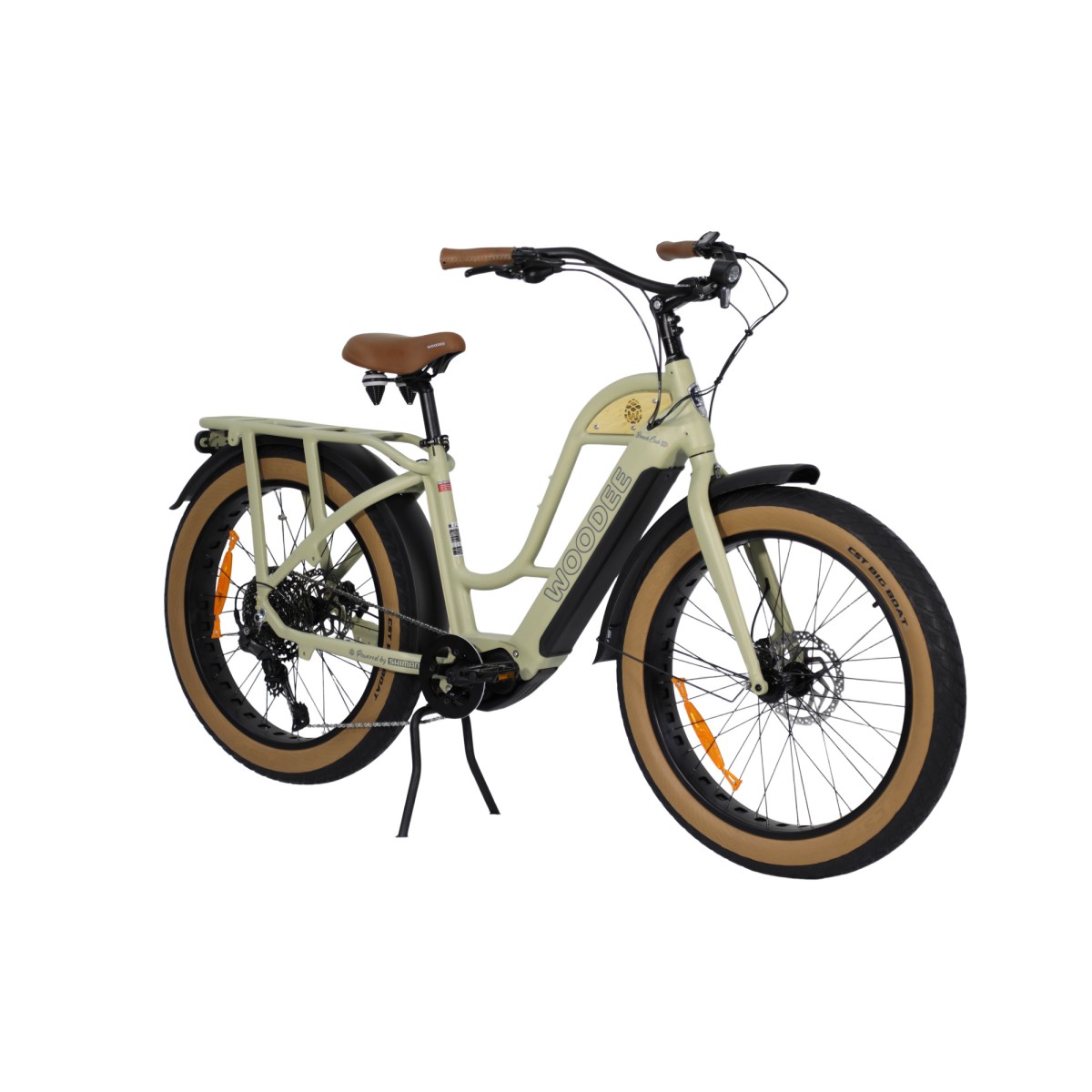

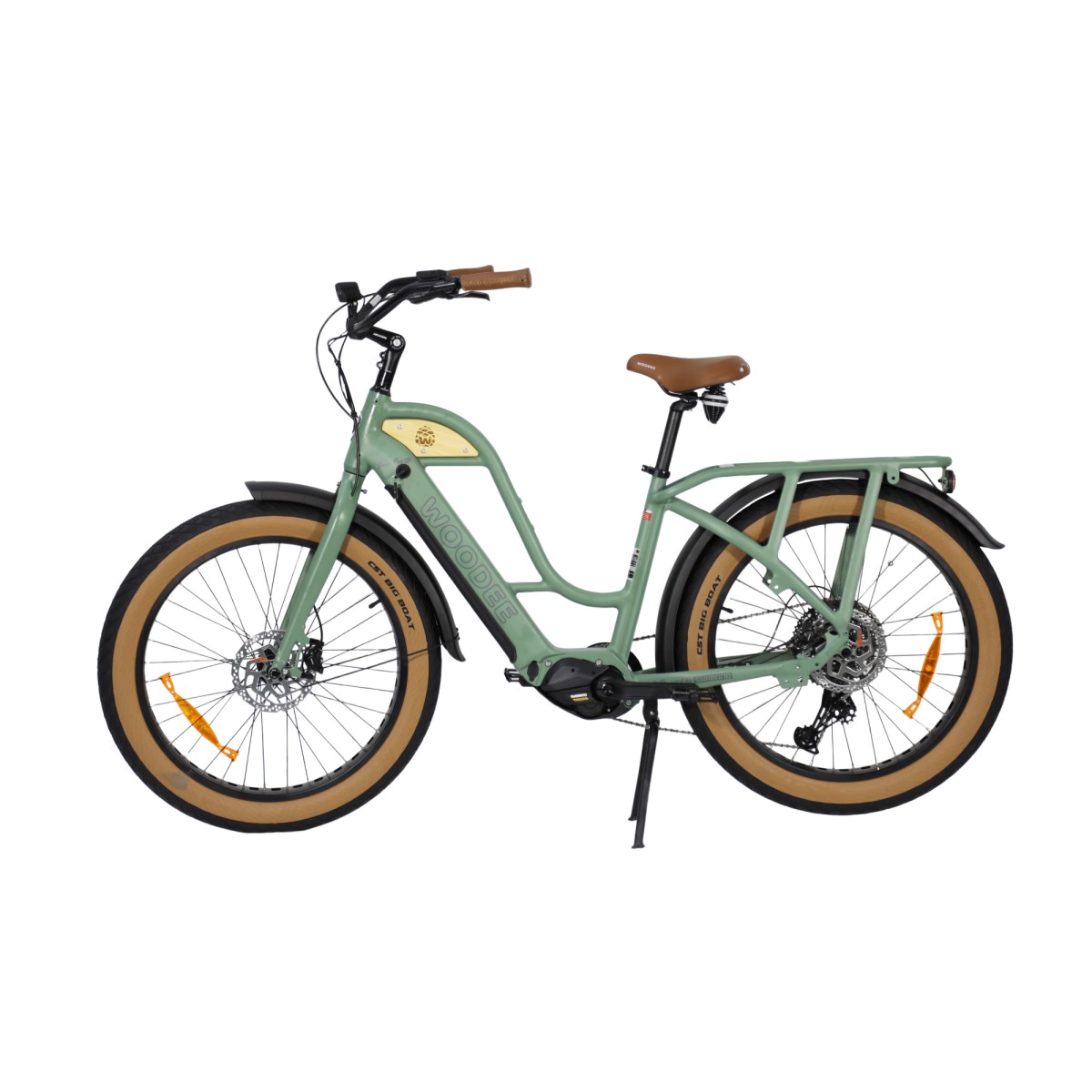

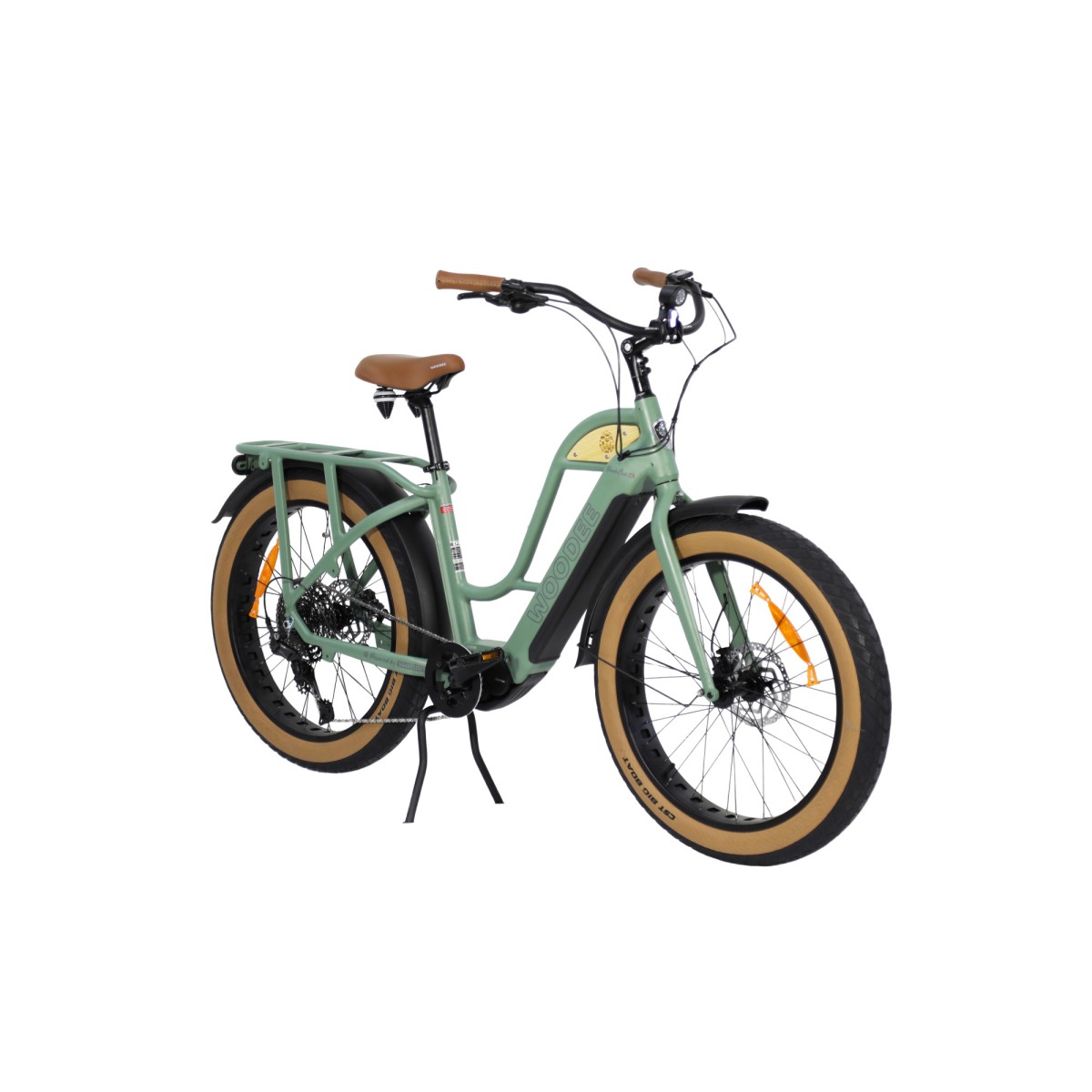

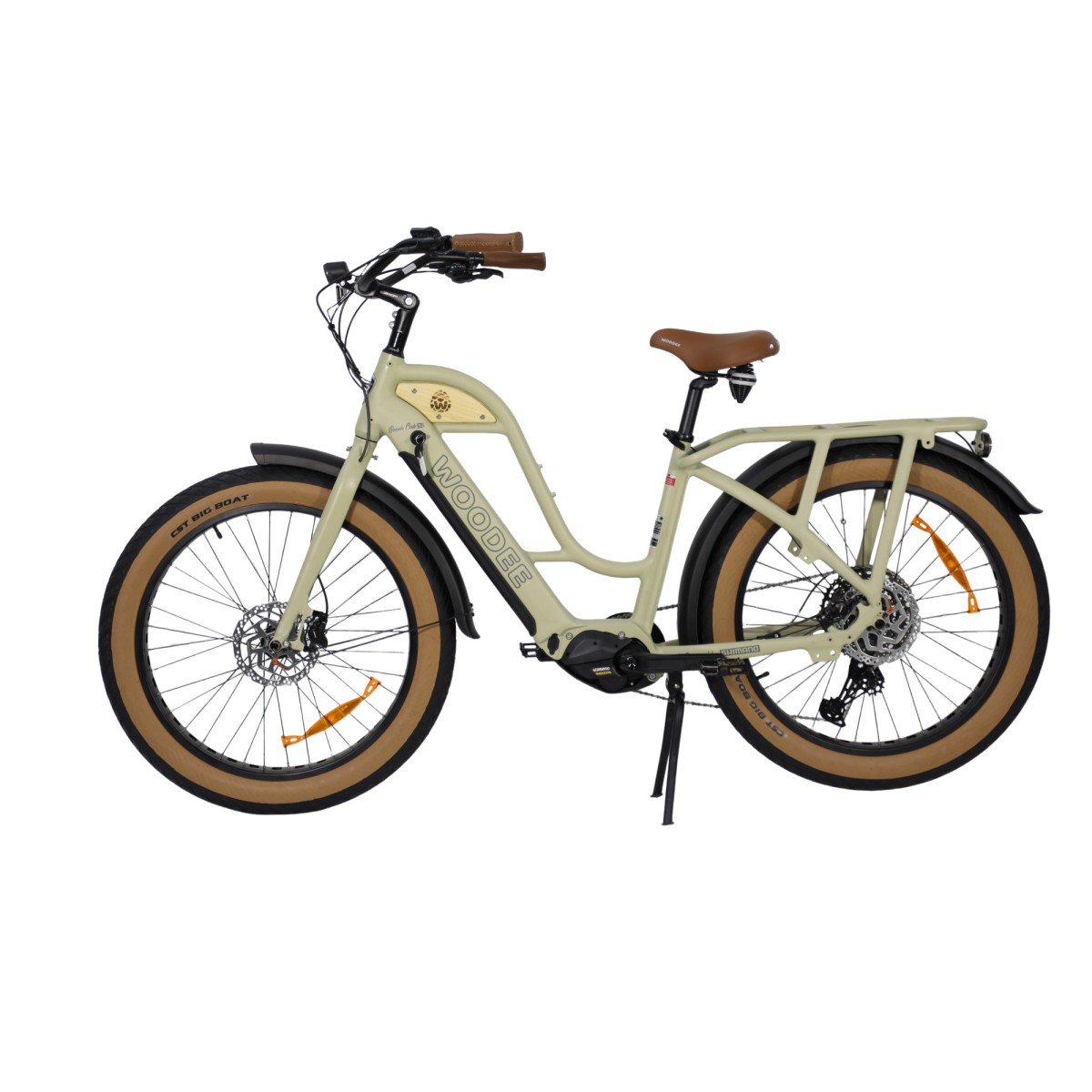

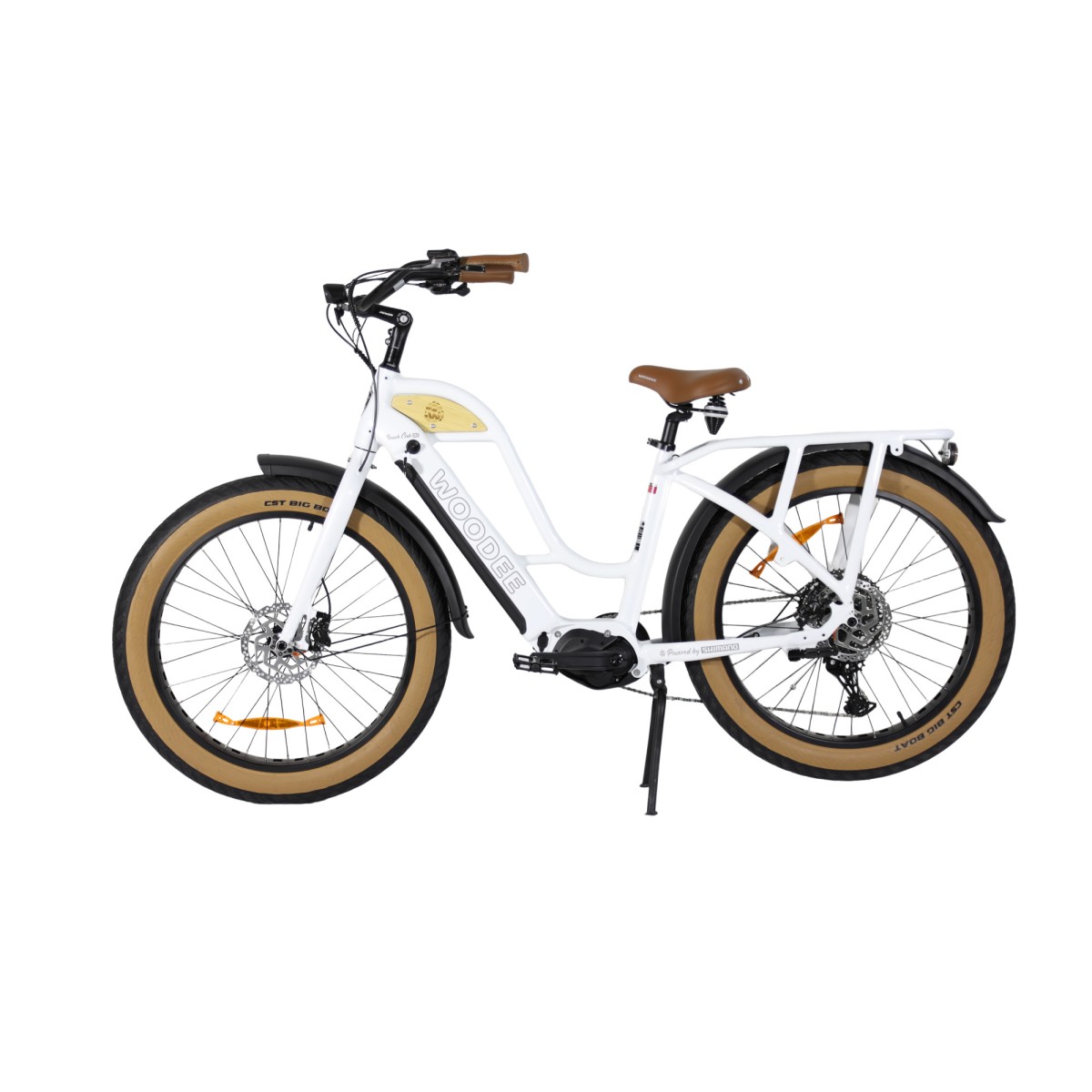

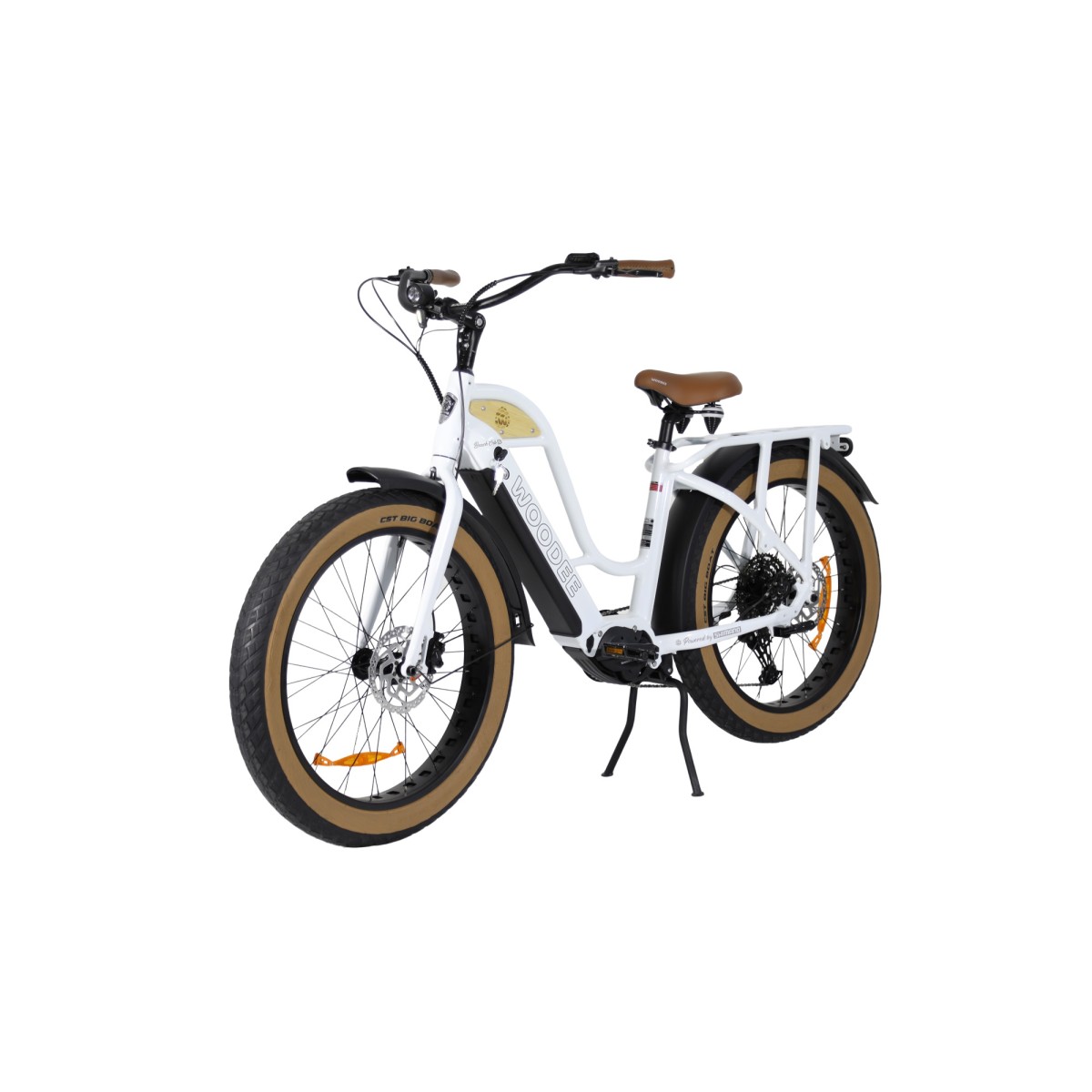

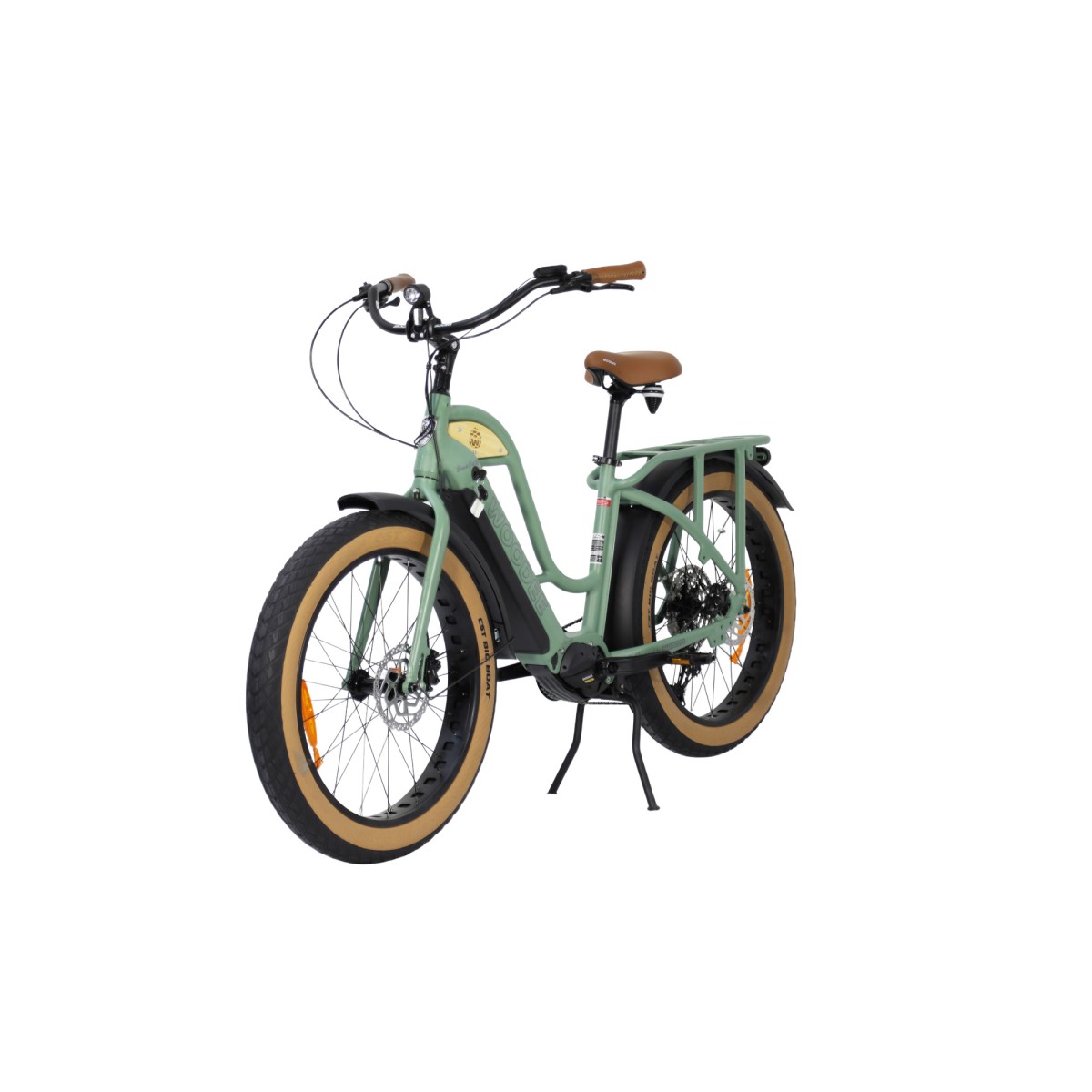

Coastliner Classic Swan Fat
3 490,00 €
An electric fat bike beach cruiser with an open frame also called a swan frame for an easy-to-climb position. Its design allows you to combine comfort and performance to ride both in town and on sandy beaches or snow thanks to the Shimano EP8 central motor. The range is between 50km and 150km.
DRIVING UNIT
Central motor 250W (25 Km/h) SHIMANO EP8. Torque max 85NM.
SHIMANO SW-E7000 DI2 Assist Control
Battery 504W SHIMANO 8035L frame integrated, removable and secured with ABUS lock.
SHIMANO EC-E60002 DI2 battery charger.
Derailleur SHIMANO M6000 Deore 10-speed. Chain KMC 10-speed.
Hydraulic Brakes 2 pistons SHIMANO Deore MT201. Discs 180 mm.
SHIMANO 10-speed cassette 36-32-28-24-21-19-17-15-13-11T
SHIMANO SCE6100 DI2 display connected via SHIMANO E-Tube mobile app.
COMPONENTS
Original WOODEE aluminum frame.
Rigid fork Cruiser steel 26 '.
Comfort Saddle Vintage Cruiser.
Handles ergo imitation leather lock-on KNUS.
Samox 38T Fat bike aluminum crankset.
Wellgo B155 pedals.
Kenda 26 x 4.0 tire.
80mm 26’ aluminum double wall honeycomb wheels.
Spanniga front and rear lighting on battery, ignition on display.
Crutch Aluminum.
Security pack
GPS tracker from BIKETRAX
Powunity mobile App
Powunity mobile App
1-year free subscription then 39,50€/year.
ABUS Anti-Theft
Pad lock Bordo 6500 SmartX
Pad lock Bordo 6500 SmartX
with alarm and Bluetooth app. Opening controlled by smartphone. Possibility to opt for the key model.
PARAVOL
bike marking and registration.
You may also like…
Performances
Autonomy
50 à 150km
Depending on the terrain, the electric assistance chosen, and the weight transported.
Power
250W - 85Nm
To easily climb any hills.
Speed
25 Km/h
Beyond that, it’s up to your legs to take over.
TECHNOLOGY AND RELIABILITY
SHIMANO mid-motor
WOODEE’s Coastliner Swan Fat is equipped with the SHIMANO EP8 electric mid-motor, the ultimate of its generation.
A featherweight of 2.6 kg that displays a nominal power of 250w (500W peak) with a torque of 85 Nm, for a smooth ride that ensures total control, with natural pedaling sensations.
Further improved performance with 36% reduced resistance for minimal consumption.
Choose from 5 levels of assistance (Off, Eco, Trail, Boost and Walk assistance) or select and set the maximum amount of torque for your riding style on 3 modes (Eco, Trail or Boost).
With the Shimano E-Tube mobile app, record your preferences under two different profiles and easily switch between them via your display if you change between daily trips and more sporty weekend rides.
Battery
SHIMANO
The 504 Wh SHIMANO BT 8035 L battery of the COASTLINER Swan FAT is renowned for its autonomy. It is integrated and removable for maximum protection combined with a neat aesthetics specific to WOODEE BIKES (possibility to increase the autonomy by 20% with the 630Wh battery option).
The SHIMANO display will show you in real time and based on the conditions, the distances still available according to the different modes of assistance: best way to optimize your consumption.
After 1000 full charge cycles (1 charge every day for 3 years), the B T 8035 L battery will retain more than 60% of its maximum capacity. An optimal longevity.
BOOST 50km TRAIL 70km ECO 150km Autonomy based on BT 8035 L 504Wh battery
Transmission
SHIMANO
Deore 10V
La gamme DEORE est réputée pour sa fiabilité, sa robustesse et son efficacité.
Couplée avec le système de motorisation SHIMANO EP8, les 10 vitesses vous apportent tout le confort pour faire face aux reliefs les plus extrèmes !
Hydraulic brakes
SHIMANO
Deore 2 pistons
The SHIMANO DEORE caliper offers braking performance while remaining lightweight and reliable stopping power in all conditions.
Its 2 brake levers are ergonomic and very effective with a short and progressive stroke.
Removable SC-E6100 display
SHIMANO
STEPS E6100 offers a large, easy-to-see display and wireless communication with the Shimano E-Tube and E-Tube Ride mobile apps.
Removable, it will secure once removed, the use of your bike. Its calculator constantly indicates your autonomy according to the real conditions of use.
5 assistance modes: OFF, ECO, TRAIL, BOOST, WALK
Odometer, distances traveled, calculation of autonomy in real time.
The best of safety
Get great peace of mind with the “Safety Pack”:
Alarm and a GPS tracker integrated to your electric bike (+399€)
GPS
tracker
GPS tracker is integrated into the mid-motor
The BIKETRAX mobile app will offer alarm and real time location
Alarm lock from ABUS
Fixed on the bike frame
Opening by Bluetooth thank to a mobile app or with a key (security level 15).
SHIMANO APPS
Customized performance diagnostics
E-Tube project
Customize your bike ride according to the type of terrain and create road profiles.
E-Tube Ride
Keep an eye on speed, distance, autonomy, and power assistance levels in real-time.
Limited edition
Collector
Our models are numbered. The Coastliner Classic Swan Fat is part of Woodee Bikes’ history, the pioneer of electric beach cruiser fat bike in France and Europe since 2014. A unique design combined with comfort for any type of terrain.
Ergonomics
The Coastliner Swan Fat offers you an ideal driving position thanks to its ergonomics «beachcruiser» and its comfort saddle.
Performance
The new high-end SHIMANO EP8 mid-motor is a reference in the world of electric mountain biking. Its performance makes it one of the undisputed leaders in this market. It is both performant and quiet. The very best!
Lightness
and autonomy
and autonomy
The Coastliner Swan Fat is as muscular as it is economical thanks to the optimization of the SHIMANO mid-motor + battery system for a range of 50 to 150 km.
Security
reinforced
reinforced
With the option Pack Security, GPS tracker and the anti-theft connected ABUS BORDO 6000K (+399€), your Coastliner Swan Fat will be secure and permanently located from the dedicated mobile application.
WOODEE SIGNATURE WOODEN PLATE
VINTAGE COMFORTABLE SADDLE
5 years warranty on the frame and 2 years on other components*
The WOODEE team with the Shimano global network provides monitoring and assistance throughout France, Europe, and America.
*Excluding wearing partsOn all our electric bikes
Warranty 5 years on frame and 2 years on other components
International aftersales service thanks to SHIMANO network
The original electric fatbike beachcruiser in Hossegor since 2014
